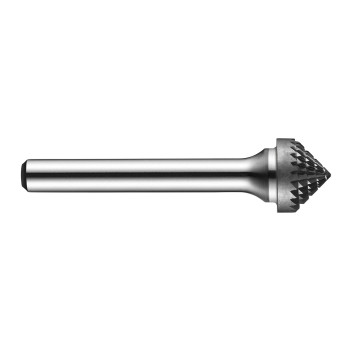

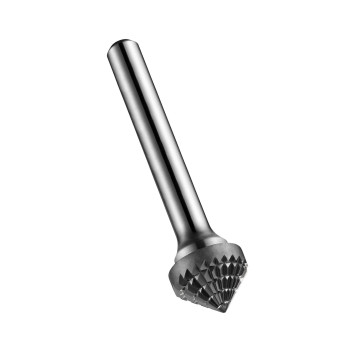

90deg Countersink burr (K shape), diameter 16mm with 8mm length of cut, 57mm overall length and 6mm shank, carbide tipped with toughened and hardened steel shank and bright finish, DC double cut flute style with close spaced edges for chamfering, making v-cuts and welding preparation in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials
- Bright finish - prevents work piece material from sticking to the cutting edge
- Premium Carbide material - carbide provides superior performance and extend tool life at high speeds
- DC geometry - breaks chips more efficiently improving control when used by hand
- Toughened and hardened steel shank - provides rigidity and strength decreasing vibrations for extended tool life
- 90 degree Countersink Shape (Shape K) - designed for de-burring chamfers and weld preparation

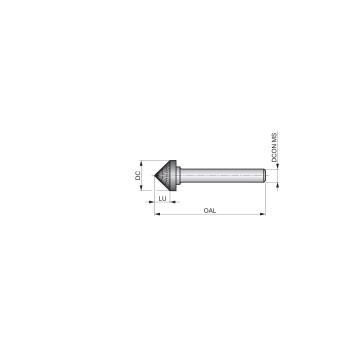

- Dimensions:- DC=16mm OAL=57 DCON MS=6 LU=8
Product attributes
Brand | Dormer Focus Range |
---|---|
Burr Shape | 90deg Countersink |
Cutting Diameter | 16mm |
DCON MS Shank Diameter | 6 |
Finish | Bright |
Material | HM |
Overall Length | 57 |
Point Angle | 90 |
Shank | Cylindrical shank |
Standard | DORMER |
