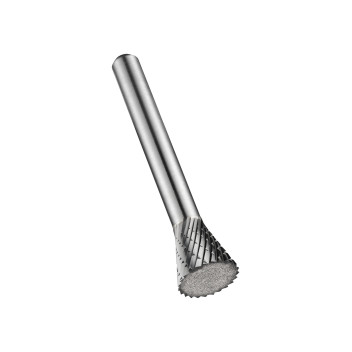

Inverted cone burr (N shape), diameter 6.3mm with 6mm length of cut, 39mm overall length and 3mm shank, carbide tipped with toughened and hardened steel shank and bright finish, DC double cut flute style with close spaced edges for making inverted v-cuts and rear-side chamfering in steel and cast steel, stainless steel, cast-iron, copper or copper alloys, high-temperature alloys, hardened materials
- Bright finish - prevents work piece material from sticking to the cutting edge
- Premium Carbide material - carbide provides superior performance and extend tool life at high speeds
- DC geometry - breaks chips more efficiently improving control when used by hand
- Toughened and hardened steel shank - provides rigidity and strength decreasing vibrations for extended tool life
- Inverted Cone shape (Shape N) - enables efficient back de-burring
- Dimensions:- DC=6.3mm OAL=39 DCON MS=3 LU=6 PRFA=12deg
Product attributes
Brand | Dormer Focus Range |
---|---|
Burr Shape | Inverted Cone |
Cutting Diameter | 6.3mm |
DCON MS Shank Diameter | 3 |
Finish | Bright |
Material | HM |
Overall Length | 39 |
Shank | Cylindrical shank |
Standard | DORMER |
Usable Length | 6 |
