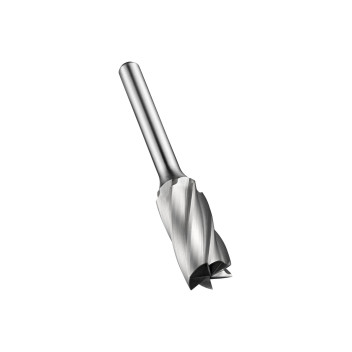

Cylinder burr with end cut (B shape), diameter 9.6mm with 19mm length of cut, 64mm overall length and 6mm shank, carbide tipped with toughened and hardened steel shank and bright finish, AL single cut flute style with wide spaced edged for machining surfaces and right-angled corners in wrought, cast aluminium and glass fibre reinforced polymers
- Bright finish - prevents work piece material from sticking to the cutting edge
- Premium Carbide material - carbide provides superior performance and extend tool life at high speeds
- AL geometry - designed to maximize material removal when machining aluminium
- Toughened and hardened steel shank - provides rigidity and strength decreasing vibrations for extended tool life
- Cylinder with endcut shape (shape B) - can be used for de-burring into 90-degree candners

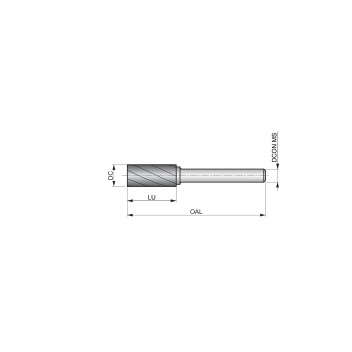

- Dimensions:- DC=9.6mm OAL=64 DCON MS=6 LU=19
Product attributes
Brand | Dormer Focus Range |
---|---|
Burr Shape | Cylinder with Endcut |
Cutting Diameter | 9.6mm |
DCON MS Shank Diameter | 6 |
Finish | Bright |
Material | HM |
Overall Length | 64 |
Shank | Cylindrical shank |
Standard | DORMER |
Usable Length | 19 |
