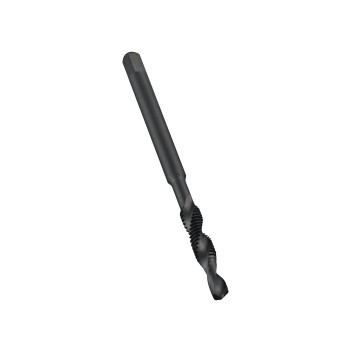

Combination drill-tap with a 30deg spiral flute, for ISO-Metric thread M6 with 1.00 mm pitch and 6H class of fit, dimensions according to DORMER-ISO standard with 6.3mm shank and 5.0mm square drive, HSS with steam tempered surface finish and 30deg helix angle for 1.5xD through hole threading in free machining steel
- Combined drill and Tap - designed to drill and tap through holes in one operation
- Steam Tempered finish - prevents work piece material from sticking to the cutting edge
- Premium HSS material - high speed steel provides superior performance and extend tool life
- Increased efficiency - reduces the number of tools required for the operation
- Versatil product - can be used for drilling and tapping shallow through holes by machine and by hand

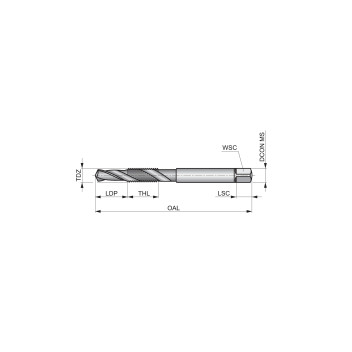

- Dimensions:- OAL=84 DCON MS=6.3 TDZ =6mm THL=18 WSC=5 LSC=8 LDP=12
Product attributes
Brand | Dormer Focus Range |
---|---|
DCON MS Shank Diameter | 6.3 |
Finish | Steam Tempered |
Material | HSS |
Overall Length | 84 |
Pitch | 1 |
Shank | Cylindrical shank with Square |
Standard | DORMER-ISO |
Thread Length | 18 |
Thread Size | 6mm |
