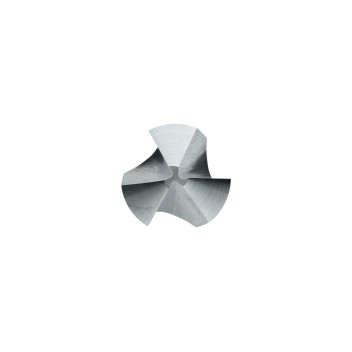

Countersink with 3-flutes, 90deg chamfering angle, maximum diameter 6.30mm with an overall length of 45mm and a head length of 5.6mm and 5mm tri-flat shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minimum hole diameter of 1.50mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, grey cast-iron, copper or copper alloys
- 90 degrees Angle - designed to chamfer holes to accommodate standard fasteners with 90 degree heads
- Premium HSS material - can be used for chamfering holes in many materials including steel, aluminium, stainless steel
- Tri-flat plain shank - three ground flats provides improved holding when used in 3-jaw chucks
- Bright finish - prevents work piece material from sticking to the cutting edge
- Versatile product - can be used in both machine and hand held applications
- Dimensions:- LCF=5.6 OAL=45 DCON MS=5 DC_1=1.5 DC_2=6.3
Product attributes
Brand | Dormer Focus Range |
---|---|
DCON MS Shank Diameter | 5 |
Finish | Bright |
Flute Length (mm) | 5.6 |
Material | HSS |
Overall Length | 45 |
Point Angle | 90 |
Shank | Cylindrical shank with Tri-Flats |
Standard | DIN 335 C |
