Stub length drill with straight shank, diameter 11.5mm with an overall length of 95mm and flute length of 47mm according to DIN/ANSI standard with 135deg split point, HSS with TiN-tip coating for 2.5xD drilling without pecking in steel and cast iron

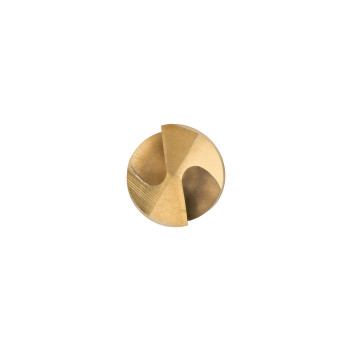

- 135 degree split point - helps with self-centering when used by hand, reduces the push force required
- Titanium Nitride coating - increases service life of the drill, improved performance when drilling harder materials
- Improved accuracy - with more accurate holes and a better quality of finish
- Premium HSS material - can be used for drilling many materials including steel, aluminium, stainless steel
- Versatile product - can be used in many different hand held and machine applications

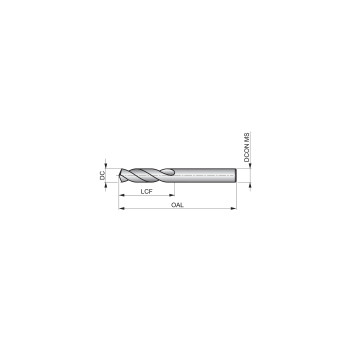

- Dimensions:- DC=11.5mm LCF=47 OAL=95 DCON MS=11.5
Product attributes
Brand | Dormer Focus Range |
---|---|
Cutting Diameter | 11.5mm |
DCON MS Shank Diameter | 11.5 |
Finish | Bright/TiN |
Flute Length (mm) | 47 |
Material | HSS |
Overall Length | 95 |
Point Angle | 135 |
Shank | Cylindrical shank |
Standard | DIN/ANSI |
