1 1/2" Balanced Shut-off Valve Type 509 - Offset Ports W50914S
Product code: W50914S
Available to Order
- Max Working Pressure : 510 bar

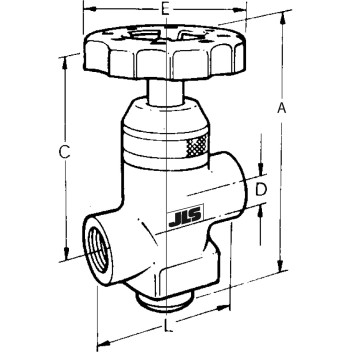

- Dimensions as below:
- A=245mm, C=179mm, D=43mm,
- E=152mm, L=121mm
Downloads
Higher pressure isolation valves with ease of operation
High integrity shut-off valve for higher pressure hydraulic or pneumatic (only dry air and gas) systems (note that for use with pneumatic applications above 20bar valve must be degreased - please indicate on order).
Allows finger tip effort closure due to internal pressure balancing, rather than considerable effort on conventional valves, at these pressures.
Incorporates non-rotating stem for long life positive sealing and a non-rising handwheel.
Standard type 509 valves are supplied with stainless steel spindles, nitrile rubber gland seal and delrin seats.
Product attributes
Flow function | Shut off |
---|---|
Max. Temperature | 100degC |
Max working pressure-gas | 255bar |
Max working pressure- liquid | 510bar |
Min. Temperature | -30degC |
Nominal Port Size | 1 1/2" |
