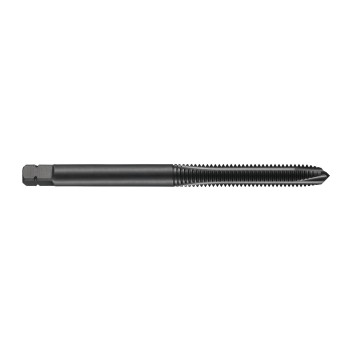

Spiral point tap with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M3 with 0.50 mm pitch and 6H class of fit, dimensions according to ISO 529 standard with 3.15mm shank and 2.5mm square drive, powder metallurgical HSS-E with steam tempered surface finish for 2.5xD through hole threading in general purpose applications
- Steam Tempered finish - increases service life of the tap, improved performance when threading harder materials
- Premium HSS-E-PM material - powder metal high speed cobalt provides superior performance and extended tool life
- Spiral point - designed for efficient threading of through holes
- ISO Standard - manufactured conforming to the international standardisation organisation
- Versatile product - first choice for tapping steels and stainless steel, also suitable for aluminium and and cast irons

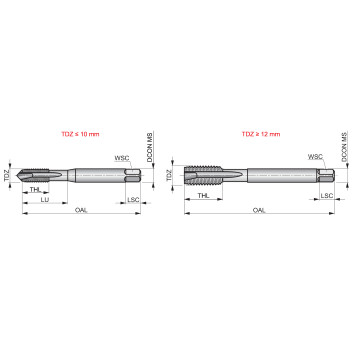

- Dimensions:- OAL=48 DCON MS=3.15 TDZ =3mm THL=15 LU=15 WSC=2.5 LSC=5
Product attributes
Brand | Dormer Focus Range |
---|---|
DCON MS Shank Diameter | 3.15 |
Finish | Steam Tempered |
Material | HSS-E-PM |
Overall Length | 48 |
Pitch | 0.5 |
Shank | Cylindrical shank with Square |
Standard | ISO 529 |
Thread Length | 15 |
Thread Size | 3mm |
